Design, Supply, & upgrading of Qurayat West 33/13.8kV substation and Qurayat City 132/33 kV Substations.
Relocation of 33kV Double circuit Power cable from Overhead to under ground system

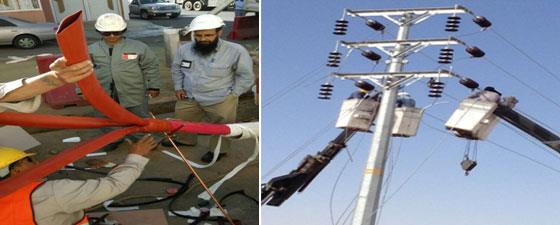

Job Includes Design, Supply, Install, Testing & commissioning (2) 33kV UG Cable Double circuits each consists of (1) 1Cx500/175 Sqmm, XLPE, Cu. Conductor Cable per phase with all accessories b/w Qurayat City & Qurayat west 33/13.8kV substation. Approx. Route length per circuit installed is 4kM.
Design, Supply, Install, Testing & commissioning of Optical fiber management rack with approx. 4.0kM 48 core NMFOC cable with complete communication handholes system along the UG power cables in HDPE subduct.
Splicing, jointing, testing & commissioning of fiber optic cable system.
Design, Supply, Install, Testing & commissioning of TN1U1 STM1, GE multiplexes for modern Communication system requirement & integrated with the existing communication network.
Constructed Manholes, Hand holes, Junction boxes, Earthing pits, Bonding Boxes, earthing systems, pullboxes, Concrete encased duct banks, sand duct banks , HDPE pipes, & directional drilling as required along the cable route & inside substations,
Installation of cable tray inside substations & control rooms - including offset , ramps , wall support, right angles. Performed all associated fabrication works.Installations of cable glands, fillers cable entry and outlet, including the associated fabrication works
Design, Supply, Install, Testing & commissioning of protection equipment’s, relays, accessories, control systems required for the upgraded 132/33kV substations.
Supply installation of Metering and Indication instruments, UPS battery system, Lightening arresters, Wave trappers Etc
Dismantle of the existing double circuit OH line including all poles, conductors, cables etc. between the 33kV switchgear of Qurayat city & Qurayat west s/s, approximately 4km
Testing & commissioning of completed upgraded substations.
